CHAIR BASES



RGE700

The RGE700 is our smallest base and is designed for display stands and mobile support and is widely used in the medical world. Adjustable bushes are available for display stand tubes.

  • Product Code - RGE700
  • Description - NYLON BASE (HTE 240) 480MM OD
  • Material - Nylon
  • Height - 50mm
  • Morse Cone Diameter - 50mm
RGE704

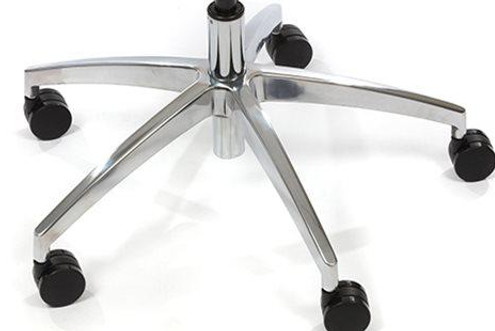

The RGE704 is a stylish polished cast aluminium base, with a unique ‘twist’ design on each leg. It is an up-lift type base, making it ideal for executive and manager-oriented style chairs with a design edge.

This base is compatible with all RGE castors, however it is recommended that the castors how a tower size of 38mm or less. All RGE gas lifts are compatible, although drop through gas lifts in combination with small diameter castors need to be checked for ground clearance. The RGE704 chair base is a larger version of the RGE705 chair base.

  • Product Code - RGE704
  • Material - Polished Aluminium
  • Height - 60mm
  • Description - AF350FC CHROME BASE 700MM OD
  • External Diameter - 620mm
  • Morse Cone Diameter - 50mm
RGE705

The RGE705 is a stylish polished cast aluminium base, with a unique 'twist' design on each leg. It is an up-lift type base, making it ideal for executive and manager-oriented style chairs with a design edge. This base is compatible with all RGE castors, however it is recommended that the castors how a tower size of 38mm or less.

All RGE gas lifts are compatible with this base, although drop through gas lifts in combination with small diameter castors need to be checked for ground clearance. The RGE705 chair base is a smaller version of the RGE704 chair base.

  • Product Code - RGE705
  • Material - Polished Aluminium
  • Height - 60mm
  • Description - AF320FC CHROME BASE 640MM OD
  • External Diameter - 660mm
  • Morse Cone Diameter - 50mm
RGE707

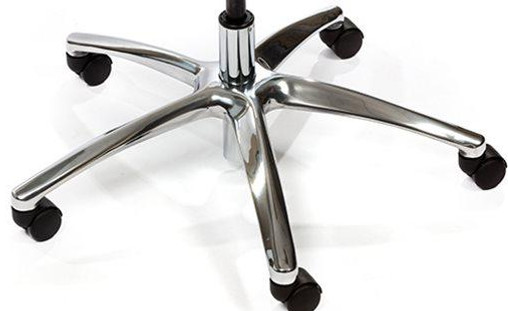

The RGE707 is a cast aluminium version of the RGE Knightsbridge base in a polished finish. This a top-of-the-range spider base with a modern design and a slim, high arch profile.

The RGE707 base is ideally suited for use on executive chairs. The Knightsbridge and RGE707 create an upgrade path for a range of chairs to offer the same base in plastic or polished finish. The RGE707 base is compatible with all RGE castors however the RGE632 60mm castor is recommended for use with drop through gas lifts.

  • Product Code - RGE707
  • Material - Polished Aluminium
  • Height - 145mm
  • Description - CHROME BASE AH668FC
  • External Diameter - 650mm
  • Morse Cone Diameter - 50mm
BRIDGE 22"

The Bridge 22” base is compatible with all RGE castors, however it is recommended that the castors have a tower size of 38mm or less.All RGE gas lifts are compatible, although drop through gas lifts in combination with small diameter castors need to be checked for ground clearance.

  • Product Code - B22501101
  • Material - 30% GF PA6 (Recycled)
  • Height - 62mm
  • Description - B22.50.11.01 Chair Base
  • External Diameter - 540mm
  • Morse Cone Diameter - 50mm
CLIFTON 25"

The Clifton base is designed for the modern workspace; curved lines give the base a contemporary look whilst maintaining stability. Ideal for home use or office, this timeless base was designed in-house by our lead designer Mark Temple. They are available from stock in the UK.

Manufactured to RGE’s exacting standards and meticulously engineered in Glass Filled Nylon, this base offers good scratch and wear resistance, whilst looking good in a light textured finish. Available in 3 colours.

  • Product Code - Clifton 25
  • Material - 30% GF PA6 (Recycled)
  • Height - 83mm
  • Description - Clifton 25"
  • Base External Diameter - 590mm
  • Morse Cone Diameter - 50mm
CLIFTON 27"

The Clifton base is designed for the modern workspace; curved lines give the base a contemporary look whilst maintaining stability. Ideal for home use or office, this timeless base was designed in-house by our lead designer Mark Temple. They are available from stock in the UK.

Manufactured to RGE’s exacting standards and meticulously engineered in Glass Filled Nylon, this base offers good scratch and wear resistance, whilst looking good in a light textured finish. Available in 3 colours.

  • Product Code - Clifton 27
  • Material - 30% GF PA6 (Recycled)
  • Height - 82mm
  • Description - Clifton 27"
  • Base External Diameter - 640mm
  • Morse Cone Diameter - 50mm
DELANCO 26"

The Delanco base is designed for the modern workspace, curved lines give the base a contemporary look whilst maintaining stability. Ideal for home use or office.

  • Product Code - DL26501101
  • Material - 30% GF PA6 (Recycled)
  • Height - 90mm
  • Description - Delanco 26""
  • Plastic Base External Diameter - 662mm
  • Morse Cone Diameter - 50mm
KNIGHTSBRIDGE 26"

The RGE Knightsbridge is a top of the range spider base with a modern design and slim high arch profile, finished with a light surface texture. The Knightsbridge base is ideally suited for use on executive chairs.

The Knightsbridge base is compatible with all RGE castors, however the RGE647 60mm castor is recommended for use with drop through gas lifts. Drop through gas lifts in combination with small diameter castors need to be checked for ground clearance. RGE707 is a complimentary aluminium version of the same design.

  • Product Code - KB26501101
  • Material - 30% GF PA6 (Recycled)
  • Height - 93mm
  • Description - Knightsbridge 26"
  • Base Pledge External Diameter - 645mm
  • Morse Cone Diameter - 50mm
STOURBRIDGE 25"
  • Product Code - ST25501101
  • Material - 30% GF PA6 (Recycled)
  • Height - 75mm
  • Description - ST25.50.11.01
  • External Diameter - 590mm
  • Morse Cone Diameter - 50mm
STOURBRIDGE 27"
  • Product Code - ST27501101
  • Material - 30% GF PA6 (Recycled)
  • Height - 75mm
  • Description - ST 27""
  • Base External Diameter - 640mm
  • Morse Cone Diameter - 50mm
WARWICK 23"

The RGE Warwick is the classic nylon base design with unrivalled international popularity. The base can be supplied with castors pre-fitted to reduce your inventory and assembly costs.

The Warwick is compatible with all RGE castors, however it is recommended that the castors have a tower size of 38mm or less. All RGE gas lifts are compatible, although drop through gas lifts in combination with small diameter castors need to be checked for ground clearance.

  • Product Code - W23501101
  • Material - 30% GF PA6 (Recycled)
  • Height - 55mm
  • Description - W23.50.11.01 BLK (Warwick)
  • External Diameter - 530mm
  • Morse Cone Diameter - 50mm
WORCESTER 25"

The RGE Worcester base features a unique unswept design and distinctive sculpted surface with a durable wear resistant finish. The Worcester base is ideally suited for use on executive chairs. This base can be supplied with castors pre-fitted reducing your inventory and assembly costs.

The Worcester 25” & 27” base is compatible with all RGE castors, however it is recommended that the castors have a tower size of 38mm or less. All RGE gas lifts are compatible, drop through gas lifts in combination with small diameter castors need to be checked for ground clearance.

  • Product Code - WC25501101
  • Material - 30% GF PA6 (Recycled)
  • Height - 75mm
  • Description - Worcester 25" Base
  • External Diameter - 590mm
  • Morse Cone Diameter - 50mm
WORCESTER 27"

The RGE Worcester base features a unique unswept design and distinctive sculpted surface with a durable wear resistant finish.The Worcester base is ideally suited for use on executive chairs. This base can be supplied with castors pre-fitted reducing your inventory and assembly costs.

The Worcester 25” & 27” base is compatible with all RGE castors, however it is recommended that the castors have a tower size of 38mm or less. All RGE gas lifts are compatible, drop through gas lifts in combination with small diameter castors need to be checked for ground clearance.

  • Product Code - WC27501101
  • Material - 30% GF PA6 (Recycled)
  • Height - 75mm
  • Description - Worcester 27""
  • Base External Diameter - 640mm
  • Morse Cone Diameter - 50mm
XO5

RGE's brand new chair base - The XO5 is designed for the modern workspace where the line between office and home is blurred. It’s contemporary lines and light use of structure make it float on its castors.

The 5 star base has been designed in-house by Mark Temple, and is available from stock in the UK and Lithuania.

Manufactured to RGE’s exacting standards and meticulously engineered in Glass Filled Nylon; this base offers good scratch and wear resistance, whilst looking good in a light textured finish. Available in 3 colours.

  • Product Code - XO5
  • Material - 30% GF PA6 (Recycled)
  • Height - 91mm
  • Description - XO5
  • Base External Diameter - 670mm
  • Morse Cone Diameter - 50mm
